Race Tractors

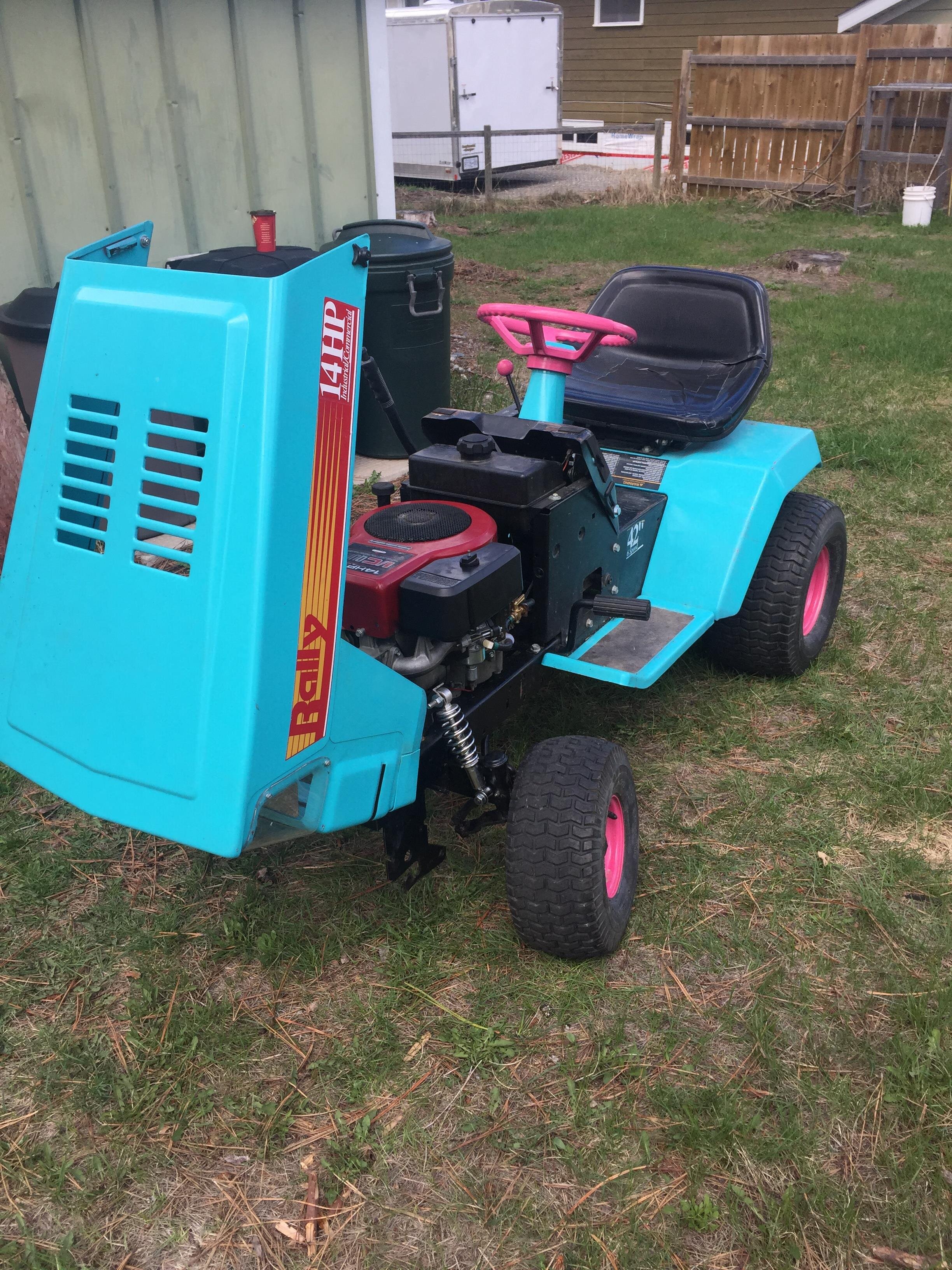

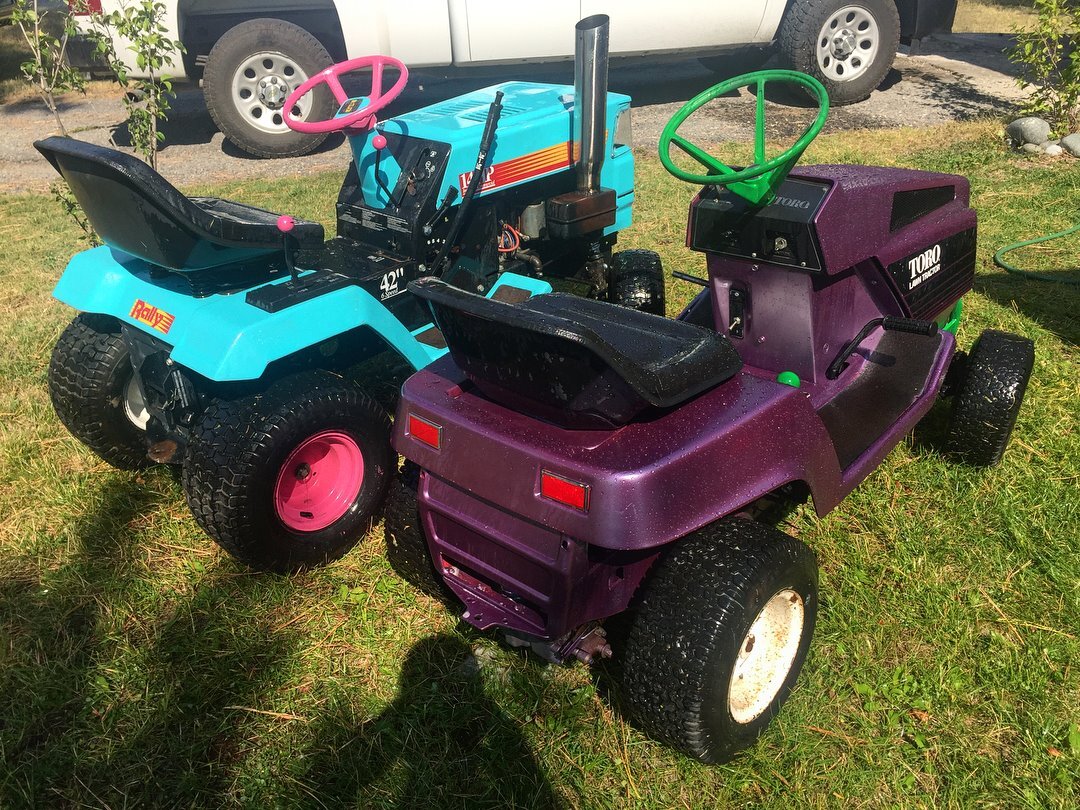

14HP Rally Lawn Tractor

I purchased this 30-year old lawn tractor at a low price due to age, leaking fluids, and engine conditions which caused it to spew smoke and run rough. All fuel lines and valves have since been replaced, the fuel tank has been rinsed, the engine compartment has been thoroughly scoured and degreased, the carb has been cleaned, jetted, and rebuilt, the battery terminals have been replaced, and the headlight bulbs have been upgraded to LEDs. The tractor now runs smoothly with proper exhaust quality. Following these restorations, the entire tractor body was disassembled and repainted in baby blue and bright pink. After modifying the drivetrain pulley ratios and adjusting the governor, the tractor now achieves a top speed exceeding 40km/h, 6 times its original capability. It can perform wheel stands when switching into first gear from rest. Car tire cables have been obtained and modified to fit the tractor for improved winter traction. An exhaust stack has been installed, and Jeep-style hood clamps have been mounted to provide improved hood support. Miniature shock struts have been retrofitted onto the tractor for improved ride quality. Future plans include installing the missing mechanical components of the brake system, a steering dampener to eliminate speed wobble, and rear rollers to perform safer wheel stands.

11HP Toro Lawn Tractor

Purchased this 40-year old lawn tractor at a low price as it did not run. After replacing degraded fuel lines, cleaning and jetting the carb, and recharging the battery, the tractor now runs smoothly with proper exhaust quality. Following these repairs, the entire tractor body was disassembled and repainted in purple and bright green. The original grille was removed and a "teeth"-style grille replacement was modelled with the relevant dimensions, 3D printed in bright green, and installed. Future plans include redesign of the clutch system to allow for high-speed gearing.
